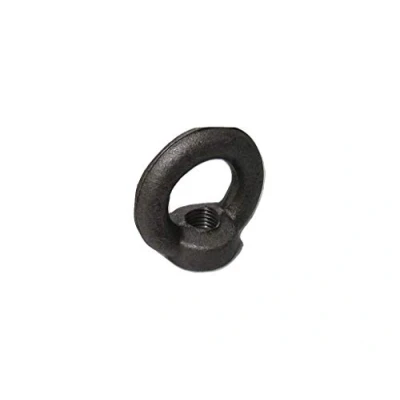

M20 Lifting Eye Nut Self Colour Threaded DIN582

ManoMano

Specifications: ProDuct Code: SFDINEN20 Product Weight: 0.358kg 1200KG Drop Forged Eye Nut Thread Diameter - M20 Conforms To - DIN582 Finish - Self Colour Product Code SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) Pitch SFDINEN06 0.07 19.8 36.1 19.6 6 9.2 19 9.5 1.00 SFDINEN06ZP 0.07 19.5 36.3 19.9 6 9 19 9 1.00 SFDINEN08 0.14 20.1 36.3 19.4 8 9 18.3 9.2 1.25 SFDINEN08ZP 0.14 20 36 19.7 8 9 19 9 1.25 SFDINEN10 0.23 25.3 44.6 24.2 10 11.5 23 10 1.50 SFDINEN10ZP 0.23 24.3 45.3 24.4 10 11 23 10.7 1.50 SFDINEN12 0.34 30 53.8 29.4 12 15.5 23 12 1.75 SFDINEN12ZP 0.34 30.5 53 29.4 12 12 26.5 13.6 1.75 SFDINEN16 0.7 35 62.6 33.7 16 15 30 15 2.00 SFDINEN16ZP 0.7 34.7 62.7 34.2 16 15 30 15.4 2.00 SFDINEN20 1.2 41 72 38.5 20 18 36.8 16.8 2.5 SFDINEN20ZP 1.2 40 71.5 38.5 20 19 36.5 16.5 2.5 SFDINEN24 1.8 50 90 48.5 24 22 46 22.5 3.00 SFDINEN24ZP 1.8 50 89.4 49.4 24 21 44 21.1 3.00 SFDINEN30 3.2 64.5 108 58.6 30 29 61.5 24.3 3.5 SFDINEN30ZP 3.2 65 108 59 30 26 58.4 24.5 3.5 SFDINEN36

Amazon

Self Colour Eyenut Thread DIA - M20 Conforms To - DIN582 Safe Working Load - 1.2 Ton A=41MM, B=72MM, C=38.5MM, D=20MM, E=18MM, F=36.8MM, G=16.8MM, Manufacturer: SecureFix Direct
