Matlock Bolt Clamp/GBS Clamp 213MM 226MM Heavy Duty W2 Stainless Steel

ManoMano

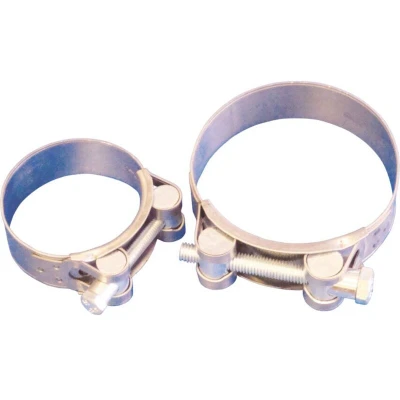

Matlock: Bolt Clamp/GBS Clamp 213MM - 226MM Heavy Duty W2 Stainless Steel Heavy duty bolt clamps to DIN 3017 are specifically designed to give extremely high band tension for sealing pressure/suction lines with either steel or plastic reinforcement and high shore hardness. Reinforced loops withstand significantly higher torques and the mechanically locked closure has no welding points and therefore no contact corrosion. Bridge gives optimal hose protection and the robust band with rounded edges for protection against injuries and/or damage to the hose surface. W2 material. Band grade 430 stainless steel. Housing/bolt 8.8 grade BZP. MPN: M278214-226 EAN: 5036140323063 Bolt Clamp/GBS Clamp 213MM - 226MM Heavy Duty W2 Stainless Steel Attributes: Band Thickness: 1.7mm Band Width: 28mm Capacity: 214 - 226mm Fastening Method: Bolt Head Size 15mm Material: Stainless Steel (304) A2 Max Pressure Bars: 6bar Pack Quantity: 1 Standards Met: DIN 3017 Surface Treatment: Plain Torque Range: 45 - 6nm

Zoro Tools

Heavy duty bolt clamps to DIN 3017 are specifically designed to give extremely high band tension for sealing pressure/suction lines with either steel or plastic reinforcement and high shore hardness. Reinforced loops withstand significantly higher torques and the mechanically locked closure has no welding points and therefore no contact corrosion. Bridge gives optimal hose protection and the robust band with rounded edges for protection against injuries and/or damage to the hose surface. W2 material. Band grade 430 stainless steel. Housing/bolt 8.8 grade BZP.
