NuaSol NuaFix 50 x A2 roof Hooks for photovoltaic Solar Panels Balcony Power Station Adjustable to 3 Different Positions, Stainless Steel 1.4016, Z Angle

ManoMano

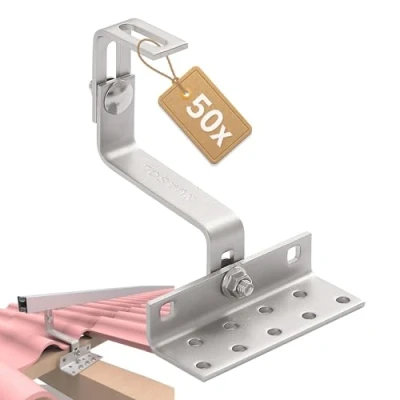

NuaFix - 50x roof hooks for PV systems Aluminium profiles NuaFix offers you different mounting Materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks and Z-brackets, you will find the right mounting material for every type of installation. Roof hooks Our weatherproof, stainless steel Z-brackets are completely pre-assembled. Our special roof hooks are suitable for the removal of aluminium rails, profile rails, fastening rails and for holding photovoltaic modules or solar systems. NuaFix roof hooks in detail Material: stainless steel (SUS 304) Flat steel hook: 60 x 30 x 5 mm Length of hook inside: 115 mm Dimensions base plate: 140 x 54 x 5 mm Mounting holes: 9 x 9mm offset Height adjustment of base plate: 44-47 mm Height adjustability flat steel hook: 60-92 mm Slotted hole measurement: 45 x 11 mm Height adjustable total: 120-160 mm Overall dimensions: 174 x 140 x 120-160 mm Suitable screw: M10x25 A2 stainless steel Matching nut: M10 stainless

Amazon

[Weather-resistant] Our weather-resistant Z-brackets made of stainless steel are completely pre-assembled. [Easy to install] Our special roof hooks are suitable for removing aluminium rails, profile rails, mounting rails and for holding photovoltaic modules or solar systems. [Material] profile stainless steel (SUS 304), nut: M10 stainless steel A2, screw: M10 x 25 A2 stainless steel [Details] Flat steel hook: 60 x 30 x 5 mm, height adjustable total: 120-160 mm, total dimensions: 174 x 140 x 120-160 mm [Stable and resilient] Snow load max.: approx. 140 kg, wind speed: max. 60 m/s, Weight: 1.6755131912 Pounds, Manufacturer: Canbolat Vertriebsgesellschaft mbH
