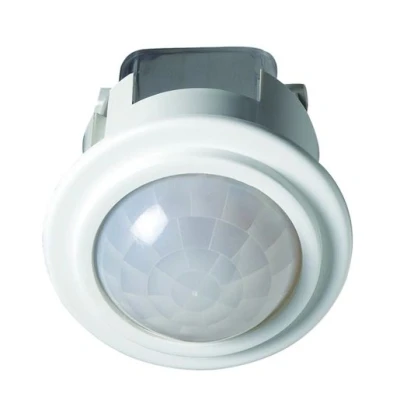

Robus PROTON 360 PIR, recessed, IP20, 75mm, White

Electrical World

Suitable for recessed indoor applicationsInjection moulded ABS body - impact resistantClear terminal cover, integral clamp and large mains terminals for 2 x 1.5mm² conductorsTerminations are safe and visible and enables loop-in/loop-out for supply to other sensorsPassive infra red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggeringDetection range 360°, detection distance 9m at 2.8m mounting heightAdjustable time delay of 5sec to 15min ensures that lighting is switched off with required delayAdjustable lux setting of 2lx to 2000lxLED load max 300WFluorescent load max 600WResistive load max 2000WTechnical SpecificationDepth: 60Diameter: 75Cut Out: 62Total Power (W): 1000Operating Voltage: 220-240IP Rating: 20Ambient Temp: 5 +25Warranty: 5Safety Class: 2Colour: WhiteTechnical Specification:Total Power (W) 1000 Lumens (lm) NA Beam Angle NA Comparable To NA CRI NA CCT (K) NA Efficacy (lm/cctW) NA Lux at 1m NAPower Factor NA Colour Cut Out (mm) Length Width - Height/ Depth (mm) Diameter (mm) Unit Weight / kg 0.11Dimensions: Length: 60mmWarranty: 5 Years

City Plumbing

The Robus Proton 360 degree passive infrared motion detector comes with an injection moulded acrylonitrile butadiene styrene body which is impact resistant. It has a clear terminal cover, an integral clamp and large mains terminals for 2 x 1. 5mm conductors. The terminations are safe, visible and enables loop-in/loop-out for supply to other sensors.
