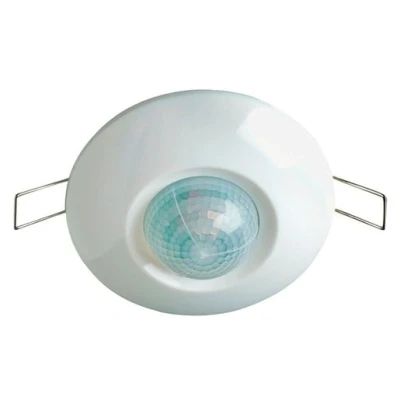

Robus PROTON UNIVERSAL 360 PIR, Recessed/Surface, 106mm, IP20, White

Electrical World

Suitable for both surface and recessed indoor applicationsInjection moulded ABS body - impact resistantPlug in terminal block and sensor moduleLarge terminals accept 2 x 1.5mm² conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittingsAdjustable time delay of 10sec to 40min ensures that lighting is switched off with required delayAdjustable lux setting of 10 to 2000lxDetection range 360°, detection distance 10m at 2.8m mounting heightPassive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggeringAdjustable passive photocell; inhibits switching where natural light is sufficientHigh load contact rating; allows numerous fittings to be switchedMaximum LED load of 300WMaximum Fluorescent load of 600WMaximum Resistive load of 2000WIP rating: surface mounted IP44, recessed IP20Technical SpecificationDepth: 57Diameter: 106Cut Out: 84Projection: 35Total Power (W): 2000Operating Voltage: 220-240IP Rating: 20Warranty: 5Safety Class: 2Colour: WhiteTechnical Specification:Total Power (W) 2000 Lumens (lm) Beam Angle Comparable To CRI CCT (K) Efficacy (lm/cctW) NA Lux at 1mPower Factor NA Colour Cut Out (mm) Length Width - Height/ Depth (mm) Diameter (mm) Unit Weight / kg 0.24Dimensions: Length: 57mm x Height: 106mmWarranty: 5 Years

City Plumbing

The Robus universal passive infrared occupancy sensor 360 degree is designed for both surface and recessed applications. It has a plug-in terminal block and a sensor module. The adjustable time delay ensures that lighting is switched off. It also inhibits switching where natural light is sufficient. The high load contact rating allows numerous fittings to be switched.
