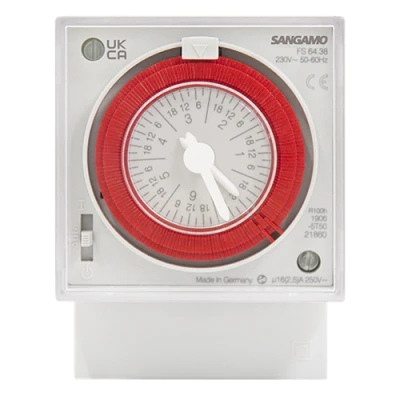

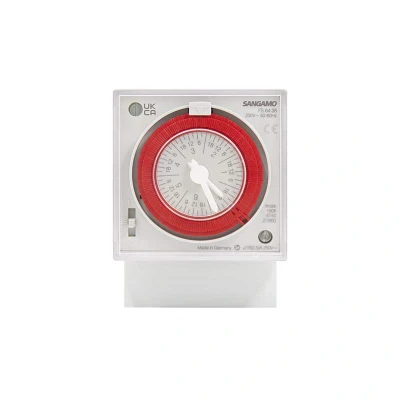

Sangamo Standard Panel Mount 7 Day Timer with Battery

Electrical World

Standard Analogue 7 Day TimerVoltage free 16A changeover contactSuitable for Surface, Panel or Din rail mounting100 hour battery reserveProgramming by 1 hour captive segmentsManual override with automatic return to programContact status displayTechnical SpecificationPower Supply: 230V AC, 50/60HzProgramming: 7 Day Display: AnalogueMounting: OptionalCurrent Rating: 16ASwitching Capacity: Resistive load 16A 250V, Voltage free inductive load (cos = 0.6) 3A 250V, Incandescent lamp 1000W 250V, Squirrel-cage motor 350W 250VReserve: 100 hourSwitching Operations: 24 per weekTemperature Range: -10°C to +50°C Storage Temperature: -10°C to +50°C Connection by cage terminals, section of conductors: 0.5 to 4 mm2Insulation class: 2Protection: IP20Dimensions: 72 x 94.5 x 48.4 mm (Face 72 x 72mm)Complies with: BS EN 60730 Technical Specification:IP Rating: IP20Dimensions: Length: 48mm x Height: 95mmWarranty: 3 Years

Expert Electrical

Sangamo Panel 7 Day Time Switch With Battery
