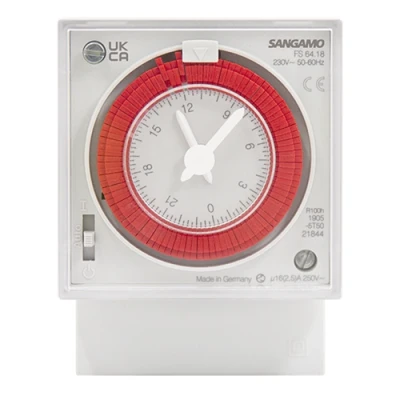

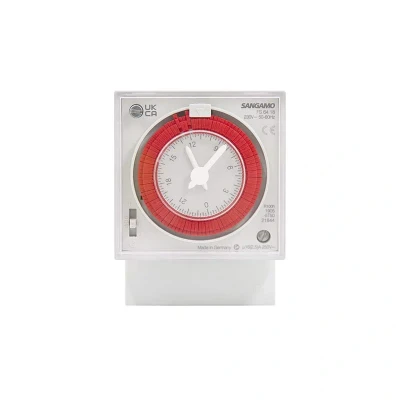

Sangamo Standard Panel 24 hr Timer With Battery
Description
Electrical World
Standard Analogue 24 hr TimerVoltage free 16A changeover contactSuitable for Surface, Panel or Din rail mounting100 hour battery reserve Programming by 15 min captive segmentsManual override with automatic return to programContact status displayTechnical SpecificationPower Supply: 230V AC, 50/60HzProgramming: 24 hourDisplay: AnalogueMounting: OptionalCurrent Rating: 16ASwitching Capacity: Resistive load 16A 250V, Voltage free inductive load (cos = 0.6) 2.5A 250V, Incandescent lamp 2000W 250VReserve: 100 hourSwitching Operations: 96 per dayTemperature Range: -10°C to +50°C Storage Temperature: -10°C to +50°C Connection by cage terminals, section of conductors: 0.5 to 4 mm2Insulation class: 2Protection: IP20Dimensions: 72 x 94.5 x 48.4 mm (Face 72 x 72mm)Complies with: BS EN 60730 Technical Specification:IP Rating: IP20Dimensions: Length: 48mm x Height: 95mmWarranty: 3 Years
Description
(2)
Standard Analogue 24 hr TimerVoltage free 16A changeover contactSuitable for Surface, Panel or Din rail mounting100 hour battery reserve Programming by 15 min captive segmentsManual override with automatic return to programContact status displayTechnical SpecificationPower Supply: 230V AC, 50/60HzProgramming: 24 hourDisplay: AnalogueMounting: OptionalCurrent Rating: 16ASwitching Capacity: Resistive load 16A 250V, Voltage free inductive load (cos = 0.6) 2.5A 250V, Incandescent lamp 2000W 250VReserve: 100 hourSwitching Operations: 96 per dayTemperature Range: -10°C to +50°C Storage Temperature: -10°C to +50°C Connection by cage terminals, section of conductors: 0.5 to 4 mm2Insulation class: 2Protection: IP20Dimensions: 72 x 94.5 x 48.4 mm (Face 72 x 72mm)Complies with: BS EN 60730 Technical Specification:IP Rating: IP20Dimensions: Length: 48mm x Height: 95mmWarranty: 3 Years
Expert ElectricalSangamo Panel 24HR Time Switch With Battery
Product specifications
