Sealey Digital Automotive Analyser 15 Function with Inductive Coupler/Infrared Temperature Probe

The 15-function, auto-ranging automotive diagnostic multimeter with infrared thermometer attachment is an essential tool for both professional mechanics and automotive enthusiasts. This versatile multimeter combines a digital and bar graph display, providing an accurate indication of component outputs in various automotive applications.

Design and Build Quality

Designed for durability, this multimeter features a workshop-tough casing that withstands the rigours of everyday use. The integral stand allows for easy positioning during testing, while the auto power shut-off function conserves battery life when the device is not in use. Its large, high-contrast display is easy to read, even in low-light conditions, thanks to the bright, white backlight.

Features and Functions

This multimeter is equipped with high-speed processing circuitry that reads standard automotive parameters, making it particularly well-suited for testing fuel injection systems. It covers a wide range of measurements, including:

- AC and DC Voltage: Ranging from 400mV to 1000V (auto-ranging).

- AC and DC Current: Measuring from 400µA to 20A (auto-ranging).

- Resistance: From 400Ω to 40MΩ (auto-ranging).

- Capacitance: With a range of 40nF to 40mF (auto-ranging).

- Frequency: Operating between 0.001Hz and 9.99MHz (auto-ranging).

- Duty Cycle: From 0.1% to 99.9%.

- Pulse Width: Ranging from 0.1 to 10 ms.

- Tachometer (RPM): Capable of measuring from 600 to 12,000 RPM in different settings.

The multimeter includes data-hold functions that allow you to freeze the displayed value for easy reading. It also features overload protection across all ranges, ensuring safe operation.

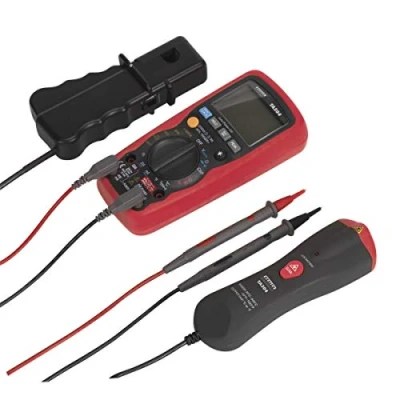

Accessories Included

The multimeter comes complete with several useful accessories that enhance its functionality:

- Inductive coupler for non-invasive current measurement.

- Infrared temperature probe for quick temperature readings.

- Test probes for standard measurements.

- Thermocouple for precise temperature measurements.

- A handy storage case that keeps all components organized.

Whether you are diagnosing electrical issues or performing regular maintenance, this automotive diagnostic multimeter offers the functionality and reliability needed to get the job done efficiently. Its impressive array of features and rugged design make it an invaluable tool in any automotive toolkit. The model number for reference is TA304, and the multimeter weighs 360 grams, making it lightweight yet robust for all your diagnostic needs.
