Sealey Gear Oil Dispensing System Air Operated

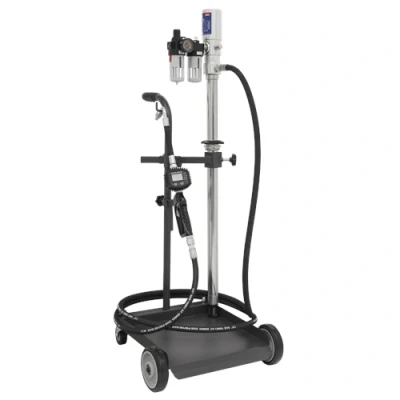

The mobile oil dispensing unit is a robust and efficient solution designed for the safe and effective transfer of various types of oils, including engine, hydraulic, synthetic, gear, and transmission oils, with a viscosity rating of up to SAE150. This unit is particularly well-suited for handling larger containers, accommodating capacities of up to 50 kg.

Key Features

- Air Operated Pump: The unit is equipped with a powerful 3:1 double acting pump designed specifically for gear oil. This effective pumping mechanism ensures a steady flow, making it ideal for various industrial applications.

- Air Management System: The pump is integrated with an air management system that optimizes performance and enhances the reliability of the dispensing process.

- Suction Probe: With a 730mm rigid suction probe featuring a non-return valve, this unit allows for efficient oil extraction from containers, reducing the risk of spills and ensuring a smooth operation.

- Hose and Meter: The included 4-meter hose facilitates flexible movement and reach during dispensing tasks. Additionally, it comes with a digital oil meter (Model No. AK4565D), providing precise measurement and control over the amount of oil dispensed.

Technical Specifications

- Maximum Air Pressure: 115 psi, ensuring powerful operation.

- Maximum Flow Rate: 12 L/min for efficient dispensing.

- Maximum Output Pressure: 350 psi, capable of handling a range of oil types with ease.

- Trolley Capacity: Designed to hold containers weighing up to 50 kg.

- Viscosity Compatibility: Suitable for oil viscosities up to SAE150, making it versatile for various applications.

- Nett Weight: Weighing 18.45 kg, this unit is manageable yet robust enough for industrial settings.

- Outlet Size: The unit features a 1/2" BSP outlet size, standard for compatibility with various attachments.

- Pump Ratio: With a 3:1 pump ratio, it delivers ample pressure for effective oil dispensing.

- Recommended Air Pressure: Optimal performance is achieved at a recommended air pressure of 70 psi.

Dimensions

- Unit Size: The mobile oil dispensing unit measures 1160 mm in length and 170 mm in height, providing a compact design that is easy to maneuver in workshops and garages.

- Total Weight: The entire unit, including the trolley, weighs approximately 22.6 kg, ensuring stability during operation while remaining portable.

Warranty

This mobile oil dispensing unit is backed by a one-year warranty, offering peace of mind regarding its quality and durability. Whether in an automotive workshop or industrial facility, this unit provides a reliable solution for all your oil dispensing needs.
