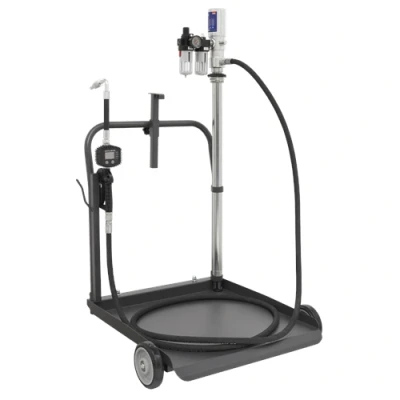

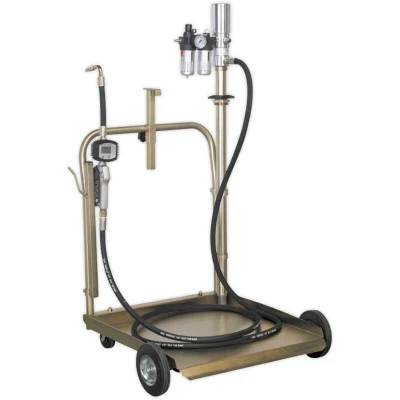

Sealey Oil Dispensing System Air Operated

The mobile oil dispensing unit is designed to offer a practical and efficient solution for the rapid dispensing of engine, hydraulic, synthetic, gear, and transmission oils, accommodating up to SAE150 viscosity. This versatile unit features an air-operated 3:1 double acting pump, specifically engineered for barrels or tanks equipped with 2" BSP fittings, making it an ideal choice for automotive workshops, garages, and industrial applications.

The heart of this system is the advanced pump, which is supplied with an air management system, helping to optimize performance and control. The pump is connected to a 940mm rigid suction probe featuring a non-return valve, ensuring that oil flows smoothly without the risk of backflow. This combination allows for a hassle-free dispensing experience, even when handling high-viscosity oils.

In terms of design, the unit is mounted on a sturdy trolley, facilitating mobility and ease of use. This ensures that users can position the dispensing unit conveniently in relation to barrels or machinery. The integrated 4m hose offers ample reach, allowing for flexible operation in various workspaces. Additionally, the unit is equipped with a digital oil meter (Model No. AK4565D), providing accurate measurement of dispensed oil quantities, thereby enhancing efficiency and reducing waste.

Technical Specifications:

- Maximum Air Pressure: 115 psi

- Maximum Flow Rate: 12 L/min

- Maximum Output Pressure: 350 psi

- Maximum Trolley Capacity: 220 kg

- Maximum Viscosity: SAE150

- Nett Weight: 28.00 kg

- Outlet Size: 1/2" BSP

- Pump Ratio: 3:1

- Recommended Air Pressure: 70 psi

- Dimensions: Length: 815 mm x Height: 190 mm

- Weight: 33.4 kg

- Warranty: 1 year

This mobile oil dispensing unit is well-suited for use with standard 205L drums, ensuring compatibility with a wide range of oil types. Its robust construction and user-friendly design enable both efficiency and durability, making it an invaluable tool in any oil dispensing application. With a one-year warranty, consumers can rest assured in their investment, knowing they are backed by a reliable product designed for performance and longevity.

In summary, whether you need to dispense oils for machinery maintenance, vehicle servicing, or various industrial uses, this mobile oil dispensing unit offers a comprehensive solution tailored to meet your needs with ease, accuracy, and efficiency.
