Sealey Oil Dispensing System Air Operated with 10m Retractable Hose Reel

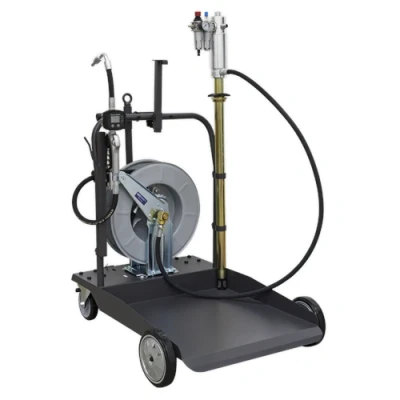

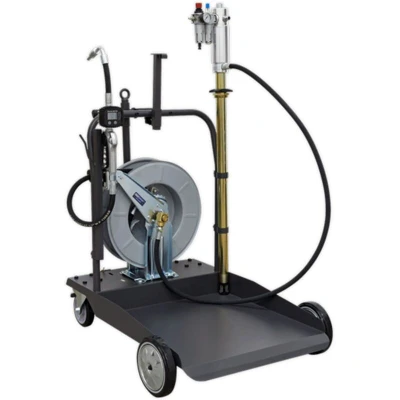

Introducing the Mobile Oil Dispensing Unit, an essential solution for efficient and reliable oil management in workshops and industrial settings. This versatile unit is designed with functionality and practicality in mind, featuring an air-operated 3:1 double acting pump suitable for barrels or tanks equipped with 2" BSP fittings. Whether you are dispensing engine oils, hydraulic fluids, synthetic oils, gear oils, or transmission oils, this unit can handle viscosities up to SAE 150 without any hassle.

Key Features

- Air Operation: The unit employs an advanced air management system, ensuring a consistent and powerful flow of oil. With a maximum air pressure of 115 psi and a recommended working pressure of 70 psi, the pump can achieve a maximum flow rate of 12 L/min and an output pressure of up to 350 psi.

- Suction Probe: Equipped with a 940mm rigid suction probe fitted with a non-return valve, this pump allows for quick and easy oil extraction from 205L drums, facilitating a smooth dispensing process.

- Trolley Design: The oil dispensing unit is mounted on a sturdy trolley, enhancing mobility and stability while in use. The maximum trolley capacity is 220 kg, making it suitable for heavy-duty tasks.

- Retractable Hose Reel: The unit includes a 10-meter retractable hose reel (Model No. AK4567D), ensuring convenient storage and maneuverability of the dispensing hose. This feature helps reduce clutter and keeps the work area organized.

- Digital Oil Meter: Accurate measurements are essential for effective oil dispensing. Thus, this unit incorporates a digital oil meter (Model No. AK4565D) to provide precise flow rates, allowing users to monitor and control oil dispensing efficiently.

Technical Specifications

- Model Number: AK4562D

- Maximum Air Pressure: 115 psi

- Maximum Flow Rate: 12 L/min

- Maximum Output Pressure: 350 psi

- Maximum Trolley Capacity: 220 kg

- Maximum Viscosity: SAE 150

- Nett Weight: 59.40 kg

- Outlet Size: 1/2" BSP

- Pump Ratio: 3:1

- Recommended Air Pressure: 70 psi

- Dimensions: Length: 820 mm x Height: 190 mm

- Weight: 63.3 kg

- Warranty: 1 year

The Mobile Oil Dispensing Unit is an indispensable tool for professionals seeking reliability and efficiency in their oil dispensing tasks. Its robust construction, combined with user-friendly features, makes it a top choice for anyone working with large quantities of oil. Ensure your workshop is equipped with this state-of-the-art dispensing unit, designed to meet the demands of both casual users and industrial applications.
