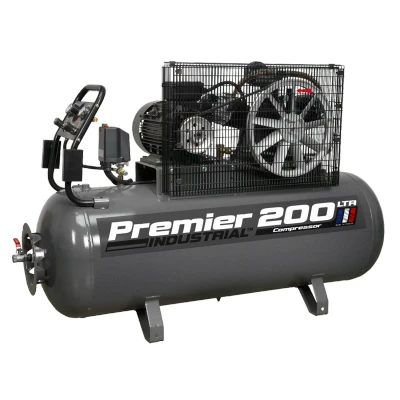

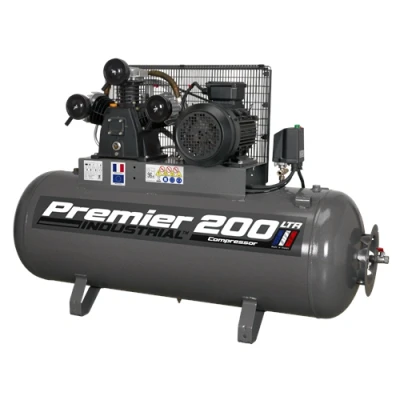

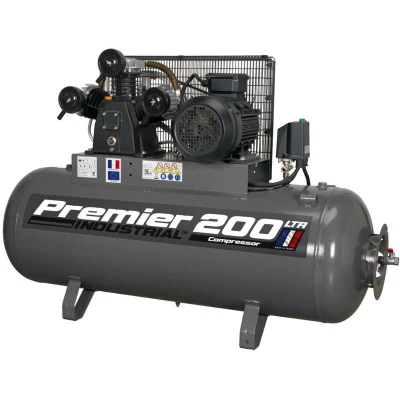

Sealey Premier Air Compressor 200L Belt Drive 5.5hp 3ph

This heavy-duty 3-phase air compressor is engineered for professional workshops, boasting a robust triple cylinder pump system coupled with a powerful 5.5hp motor. This configuration maximizes performance while keeping operational costs low, especially when compared to single-stage, single-phase models.

Performance Features

The compressor delivers impressive specifications, including:

- Air Displacement: 20.7 CFM (585 L/min)

- Maximum Free Air Delivery: 15.9 CFM (450 L/min)

- Maximum Pressure: 145 psi (10 bar)

Such capabilities ensure that this compressor can handle a variety of demanding tasks and applications with ease.

Durable Construction

Designed for longevity, this compressor features heavy-duty full cast cylinders, complemented by alloy heads. This combination promotes improved heat dissipation, enhancing the compressor's lifespan. The unit is also equipped with heavy-duty drive guards, which protect critical components such as the belt and flywheel. These guards are designed to force air circulation over the pump, aiding in effective cooling during operation.

User-Friendly Features

This compressor includes a drain valve for the easy release of condensed water buildup in the tank, ensuring maintenance is straightforward and efficient. Operating the compressor is also simplified thanks to the included operating and maintenance manual, which, together with full CE certification and test certificates, ensures safety and reliability.

Technical Specifications

- Model Number: SAC32055B

- Outlet: 1/4" BSP

- Minimum Rated Supply: 32A

- Nett Weight: 121 kg

- Receiver Capacity: 200 L

- Overall Dimensions: 1430 mm x 500 mm x 970 mm

- Operating Speed: 1181 RPM

- Supply Voltage: 415V

- Weight: 147.8 kg

- Warranty: 2 years

Conclusion

This heavy-duty 3-phase compressor is an excellent choice for workshop professionals looking for reliability, efficiency, and durability. Its high-performance capabilities, combined with user-friendly features, make it a vital addition to any workshop environment. Whether for light touch-ups or intensive use, this compressor stands ready to meet your demanding air compression needs.
