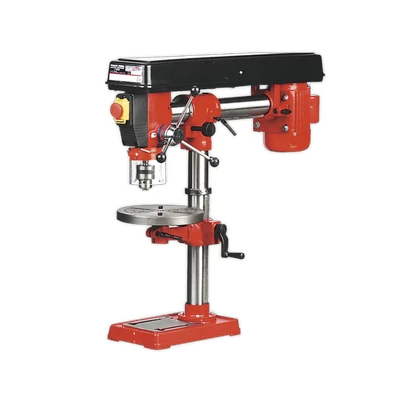

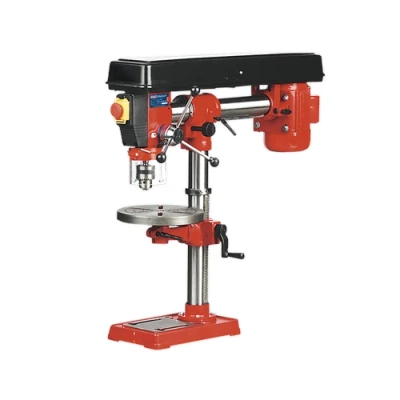

Sealey Radial Pillar Drill Bench 5 Speed 820mm Height 550W/230V

This heavy-duty radial pillar drill is designed for precision and versatility in workshop environments. Engineered with robust construction, it offers a multitude of features that enhance its usability and safety, making it an essential tool for both professional and hobbyist woodworkers.

Key Features

- Heavy-duty construction ensures reliability and longevity in demanding applications.

- Safety devices include a no-volt release switch and a pulley cover cut-out microswitch, providing enhanced protection against accidental start-up.

- The radial feature enables off-table drilling and angled drilling, expanding the range of potential applications.

- Maximum throat depth of 420mm allows for deep drilling, accommodating larger workpieces.

- The radial arm is controlled by a rack and pinion assembly for fine and precise positioning of the drill bit, ensuring accuracy in every operation.

- The machine comes fitted with a 16mm (5/8") capacity chuck, designated as Model No. 2MT, making it suitable for various drill bit sizes.

- Mortising attachment is available (order Model No. MA10) to facilitate mortising tasks, further increasing the machine's versatility.

Technical Specifications

- Height: 820mm

- Spindle Centre to Column - Maximum: 420mm

- Motor Power: 550W, delivering consistent performance for various drilling operations.

- Column Diameter: 60mm, providing strength and stability.

- Spindle Travel: 80mm, allowing for deep cuts.

- Nett Weight: 43kg (approximately 96 lbs), indicating a solid build that enhances stability during use.

- Base Size: 345 x 215mm, ensuring a sturdy foundation.

- Collar Diameter: 60mm

- Drilling Capacity (Chuck Size): 16mm

- Maximum Distance from Spindle to Base: 470mm

- Maximum Distance from Spindle to Table: 300mm

- Number of Speeds: 5, allowing adjustments for different materials and applications.

- Speed Range: 500-2450rpm for versatility in drilling tasks.

- Spindle Nose Taper: MT2, accommodating a wide range of drill bits.

- Radial Arm Travel: 285mm, providing flexibility in drilling angles.

- Overall Dimensions: Length of 455mm and Height of 310mm.

This radial pillar drill is ideal for those seeking a powerful and versatile tool for workshop tasks, from drilling to mortising. Its array of safety features, adjustable settings, and robust construction make it a reliable addition to any tool collection. Whether operating in a professional setting or tackling personal projects, this drill delivers precision and efficiency, facilitating a wide spectrum of woodworking tasks.
