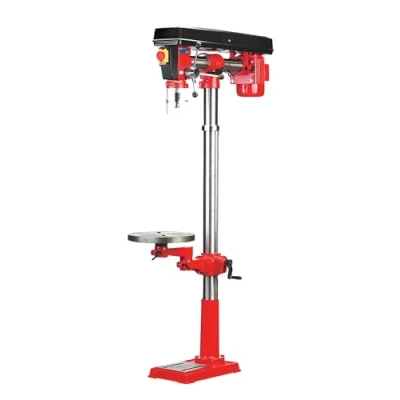

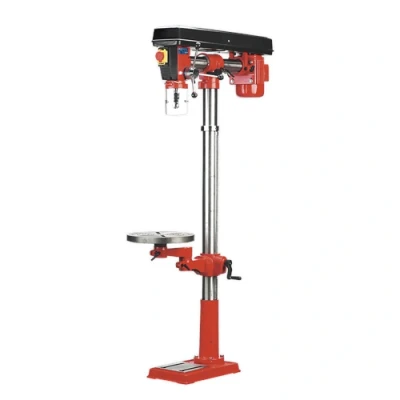

Sealey Radial Pillar Drill Floor 5 Speed 1620mm Height 550W/230V

The GDM1630FR is a heavy-duty radial drilling machine designed for precision and versatility in various drilling applications. This robust machine features a sturdy construction essential for durability and longevity, making it suitable for professional workshops and industrial environments.

Safety Features

The GDM1630FR comes equipped with several safety devices to ensure safe operation. It includes a no-volt release switch that prevents accidental restarting after a power failure and a pulley cover cut-out microswitch that enhances safety during use.

Drilling Capabilities

One of the standout features of this model is its radial arm, controlled by a rack and pinion assembly. This mechanism allows for fine positioning of the drill bit, enabling accurate off-table drilling and angle drilling. With a maximum throat depth of 420mm and a spindle centre to column distance of up to 420mm, the machine offers significant flexibility for various drilling tasks. The radial arm travel measures 285mm, further enhancing its usability.

Specifications

- Chuck Capacity: The GDM1630FR features a 16mm (5/8") capacity chuck, utilizing an MT2 spindle nose taper for secure bit holding.

- Motor Power: It operates with a powerful 550W motor, providing ample strength for demanding drilling applications.

- Spindle Travel: The spindle has a travel distance of 80mm, allowing for depth adjustments as required.

- Dimensions: The machine has a height of 1620mm, with the maximum distance from the spindle to the base being 1280mm and from the spindle to the table being 830mm.

- Weight: Weighing in at 59kg, this machine is both sturdy and rugged, designed to withstand the rigours of regular use.

Additional Features

- Speed Range: The GDM1630FR can operate at five different speeds, ranging from 500 to 2450 rpm, offering versatility to accommodate various materials and drilling requirements.

- Base and Working Surface: It features a base size of 420 x 250mm and a working table surface size of Ø310mm, providing ample space for larger projects. The column diameter is 70mm and the collar diameter is Ø60mm.

Optional Accessories

For those seeking to expand the functionality of their drilling machine, a mortise attachment (Model No. MA10) is available for purchase, as well as a keyless pillar drill chuck (Model No. GDMX/KC) for added convenience.

In summary, the GDM1630FR radial drilling machine combines precision, durability, and essential safety features. It is an ideal solution for industrial applications requiring a reliable and versatile drilling tool.
