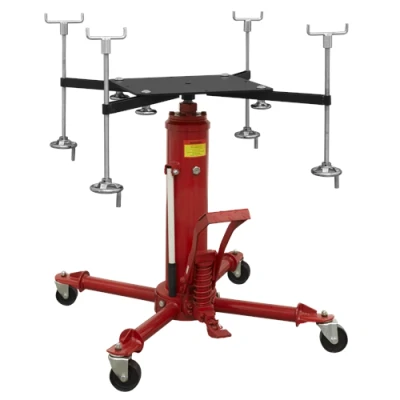

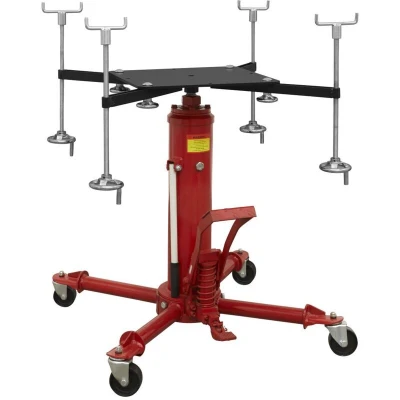

Sealey Subframe Cradle and 500kg Transmission Jack Combo

The 500TTJ - 0.5 Tonne Vertical Telescopic Transmission Jack is a robust and versatile tool designed for the efficient handling of engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems, and other heavy-duty applications. Its intelligent engineering ensures that it not only meets but exceeds user expectations in functionality and safety.

Key Features

- Telescopic Ram: The two-stage ram design significantly reduces clearance, making it easier to reach and lift heavy components. This feature enhances the overall efficiency of the lifting process.

- High-Speed Lift: Experience a quick lift capability when unladen, minimizing the foot pumps needed to reach the required height. When loaded, it transitions to a slower lifting speed, which provides enhanced control and accuracy during positioning.

- Foot Pedal Operation: Designed for convenience, the foot pedal operation allows users to keep their hands free for necessary adjustments or fixings, increasing productivity.

- Safety Mechanisms: The spring-loaded dead man's safety release control mitigates the risk of inadvertent lowering, ensuring a safer working environment for users.

- Highly Manoeuvrable: The jack is equipped with large, smooth-running castors that facilitate easy positioning and maneuvering, allowing users to work efficiently in tight spaces.

- Versatile Adaptor: Included is a Fully Adjustable Subframe/Engine Load Adaptor, which accommodates various designs of fittings suitable for differing applications, adding to the jack's versatility.

- Labour Saving Design: This design enables many tasks to be performed by a single operator, reducing the need for additional manpower and streamlining workflow.

Technical Specifications

The 500TTJ Transmission Jack presents a base size of 1000 x 1000mm, with a capacity of 500kg for the 500TTJ model and 450kg for the SFC01 adaptor. The saddle is fully adjustable with a maximum height of 1875mm and a minimum height of 890mm, catering to various lifting needs. The weight of the transmission jack is approximately 102.2kg, ensuring a sturdy frame that can handle the rigors of heavy loads.

Assembly and Accessories

This product is designed for easy assembly, allowing the adaptor to be fitted and removed effortlessly from the transmission jack as required. While there are no optional accessories listed, the included items allow for immediate use right out of the box.

In summary, the 500TTJ Transmission Jack, complemented by the SFC01 Subframe/Engine Load Adaptor, is an essential tool for any automotive professional or enthusiast seeking reliability, safety, and efficiency in heavy lifting tasks.
