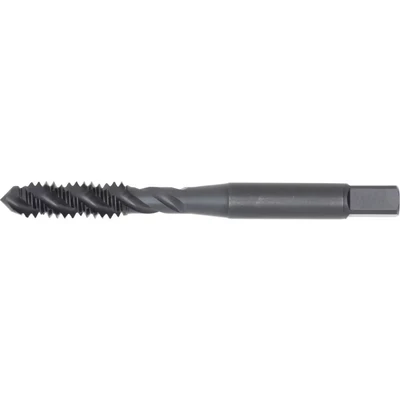

Sherwood 1/4"X20 UNC HSSGT Spiral Flute Tap
Description
ManoMano
Sherwood: 1/4"X20 UNC HSSGT Spial Flute Tap IS0 529 - Spiral Flute Spiral flute taps are used for machine tapping of blind holes as the have a spiral flute that channels the swarf back behind the tap and out of the hole along the flute. MPN: 2012-024 EAN: 5036140278684 1/4"X20 UNC HSSGT Spial Flute Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Helix Angle: 45° Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 66.0mm Pitch: 20 Shank Diameter: 6.3mm Square Width: 5.00mm Tap Type: Spiral Flute Thread Direction: Right Hand Thread Length: 19.0mm Thread Size: 1/4in. Thread Standard: UNC
Description
(2)
Sherwood: 1/4"X20 UNC HSSGT Spial Flute Tap IS0 529 - Spiral Flute Spiral flute taps are used for machine tapping of blind holes as the have a spiral flute that channels the swarf back behind the tap and out of the hole along the flute. MPN: 2012-024 EAN: 5036140278684 1/4"X20 UNC HSSGT Spial Flute Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Helix Angle: 45° Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 66.0mm Pitch: 20 Shank Diameter: 6.3mm Square Width: 5.00mm Tap Type: Spiral Flute Thread Direction: Right Hand Thread Length: 19.0mm Thread Size: 1/4in. Thread Standard: UNC
Zoro ToolsIS0 529 - Spiral Flute
