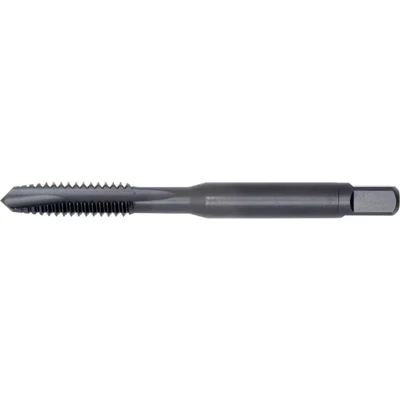

Sherwood 1/4"X20 UNC HSSGT Spiral Point Tap

ManoMano

Sherwood: 1/4"X20 UNC HSSGT Spiral Point Tap IS0 529 - Spiral point/gun nose are manufactured from HSS with a black oxide coating for added strength durability and a prolonged tool lifespan. Features and Benefits HSS construction for added tool strength Black oxide coating protects angainst wear caused by use and heat Class 2 thread forms / medium fit tolerance Precision ground flutes for greater tool accuracy Typical Applications Tapping Standards Tap dimensions to ISO529 MPN: SHR0850850E EAN: 5036140278677 1/4"X20 UNC HSSGT Spiral Point Tap Attributes: Class of Fit: 2B Dimensions Standard: ISO 529 Finish/Coating: Steam Tempered Material: High Speed Steel Material Grade: M2 Number of Flutes: 3 Overall Length: 66.0mm Pitch: 20 Shank Diameter: 6.3mm Square Width: 5.00mm Tap Type: Spiral Point Thread Direction: Right Hand Thread Length: 19.0mm Thread Size: 1/4in. Thread Standard: UNC

Zoro Tools

IS0 529 - Spiral point/gun nose are manufactured from HSS with a black oxide coating for added strength durability and a prolonged tool lifespan. Features and Benefits HSS construction for added tool strength Black oxide coating protects angainst wear caused by use and heat Class 2 thread forms / medium fit tolerance Precision ground flutes for greater tool accuracy Typical Applications Tapping Standards Tap dimensions to ISO529
