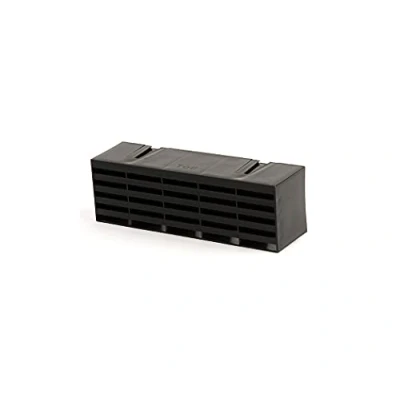

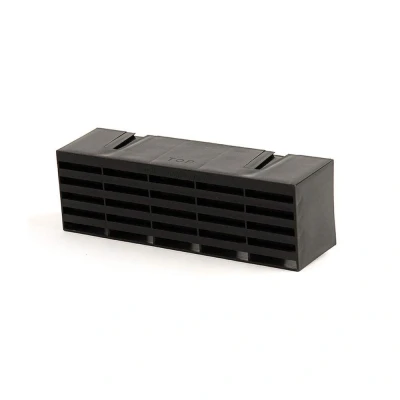

TIMCO Timloc Black Pack of 20 Plastic Airbricks

Timloc Plastic Airbrick is designed for versatile ventilation in suspended floor and external wall applications. The airbrick features integral clips for easy stacking to form 9 x 9 inch or 9 x 6 inch configurations, and a stepped front grille that helps prevent wind-driven rain while allowing unobstructed airflow. Made from UV-stabilised polypropylene, it is durable and decay resistant, and compliant with BS 5440 Pt 2. Each airbrick provides a ventilation area of 6170 mm2 and measures 255 mm in height, 230 mm in width, and 370 mm in depth. The product is available in black and is supplied in a box of 20. It is designed for use with cavity sleeves and underfloor ventilators in Timloc’s range, including models 1201 and 1201xl. This airbrick is suitable for integration with underfloor ventilation systems to provide airflow below suspended ground floors and through external walls.

Features

• Clips enable easy stacking for 9×9 or 9×6 configurations
• Front grille reduces rain ingress in strong winds
• Stepped front grille provides unobstructed airflow
• UV-stabilised polypropylene for durability and decay resistance
• Available in black, box of 20

Technical specifications

• Ventilation area: 6170 mm2 per air brick
• Dimensions: 255 mm (H) × 230 mm (W) × 370 mm (D)
• Compliance: BS 5440 Pt 2; equivalent area marking compliant with BS EN 13141-1:2004
• Equivalent area: 6170 mm2 per air brick; weight: 4.88 lb
• Material: polypropylene; UV-stabilised; designed for use with cavity sleeves and 1201/1201xl underfloor ventilators
