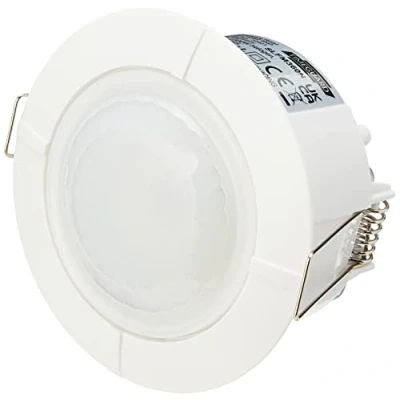

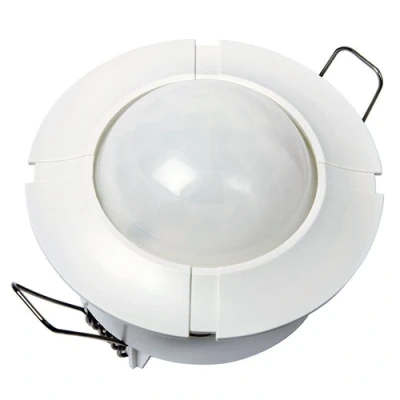

Timeguard 360 Flush Mount Ceiling PIR Detector (2019 Model)
Description
Electrical World
Timeguard SLFM360N 360° Flush Mount Ceiling PIR Presence Detector Ideal for energy saving installations in the workplace, corridors, offices, toilets etc., where light control can make all the difference. Flush mounting 360° ceiling flush mount PIR presence detector 8m detection range for motion and 4m for presence detection at a 3m mounting height No creep zone - maximum coverage Light ON time adjustable from 3 seconds to 18 minutes Manual ON/OFF override Adjustable 1-1000 LUX setting IP44 weatherproof rating (suitable for indoor use only) Total PIR switching: 2000W halogen, 500W fluorescent, 250W LED lighting, 75W fan Not suitable for discharge lighting Technical Specification Operating Voltage: 230V AC 1 or 2 Channel: 1 Channel Controls LED Lighting (max.): 250W 1st Channel Filament/Halogen Loading (W): 2000 1st Channel Fluorescent/Low Energy Loading (W): 500 / 150CFL / Low Energy Weatherproof Rating: IP44 Detection (metres max): 8m Angle of Detection: 360° Permanent ON Facility: Electronic Adjustable Light Level Control: Yes EC Directives: Conforms to latest directives Overall Dimensions: Height 88mm, Width 88mm, Depth 70mm (18mm off the surface) Ceiling Cut-Out: 75mm Comes with a 3 Year Warranty
Description
(3)
Timeguard SLFM360N 360° Flush Mount Ceiling PIR Presence Detector Ideal for energy saving installations in the workplace, corridors, offices, toilets etc., where light control can make all the difference. Flush mounting 360° ceiling flush mount PIR presence detector 8m detection range for motion and 4m for presence detection at a 3m mounting height No creep zone - maximum coverage Light ON time adjustable from 3 seconds to 18 minutes Manual ON/OFF override Adjustable 1-1000 LUX setting IP44 weatherproof rating (suitable for indoor use only) Total PIR switching: 2000W halogen, 500W fluorescent, 250W LED lighting, 75W fan Not suitable for discharge lighting Technical Specification Operating Voltage: 230V AC 1 or 2 Channel: 1 Channel Controls LED Lighting (max.): 250W 1st Channel Filament/Halogen Loading (W): 2000 1st Channel Fluorescent/Low Energy Loading (W): 500 / 150CFL / Low Energy Weatherproof Rating: IP44 Detection (metres max): 8m Angle of Detection: 360° Permanent ON Facility: Electronic Adjustable Light Level Control: Yes EC Directives: Conforms to latest directives Overall Dimensions: Height 88mm, Width 88mm, Depth 70mm (18mm off the surface) Ceiling Cut-Out: 75mm Comes with a 3 Year Warranty
AmazonChannel: 1 Channel Max.Controls LED lighting: 250W 1st Channel filament/halogen loading: 2000W 1st Channel fluorescent/low energy loading: 500W/150W CFL/Low Energy IP rating: IP44, Weight: 0.220462262 Pounds, Manufacturer: TimeGuard
Expert ElectricalTimeGuard Flush Mount PIR Presence Detector
