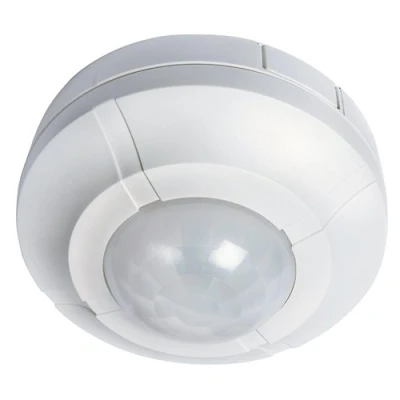

Timeguard 360 Surface Mount Ceiling PIR Detector
Description
Electrical World
Timeguard SLW360N 360° Surface Mount Ceiling PIR Presence Detector Timeguard take PIR Presence Detectors to the next level for optimum coverage and control. Slimline sensor head design. 360° area of detection with up to an 8m detection range for motion and 4m for presence detection at a 3m mounting height. IP44 weatherproof rating (internal use only). Manual override. Adjustable time setting: 3 seconds – 18 minutes. Adjustable 1–1000 LUX setting. Total PIR switching – 2000W halogen, 500W fluorescent, 250W LED lighting, 75W fan. Technical Specification Operating Voltage: 230V AC 1 or 2 Channel: 1 Channel Controls LED Lighting (max.): 250W 1st Channel Filament/Halogen Loading: 2000W 1st Channel Fluorescent/Low Energy Loading: 500/150W CFL/Low Energy Weatherproof Rating: IP44 Detection (metres max.): 8m Angle of Detection: 360° Light ON Time after last (seconds min.): 3 Detection (Adjustable) – (minutes max.): 18 Permanent ON Facility: Electronic Adjustable light level control EC Directives (conforms to latest directives) Dimensions (Height x Width x Depth): 53 x 103 x 103mm Comes with a 3 Year Manufacturer's Warranty
Description
(2)
Timeguard SLW360N 360° Surface Mount Ceiling PIR Presence Detector Timeguard take PIR Presence Detectors to the next level for optimum coverage and control. Slimline sensor head design. 360° area of detection with up to an 8m detection range for motion and 4m for presence detection at a 3m mounting height. IP44 weatherproof rating (internal use only). Manual override. Adjustable time setting: 3 seconds – 18 minutes. Adjustable 1–1000 LUX setting. Total PIR switching – 2000W halogen, 500W fluorescent, 250W LED lighting, 75W fan. Technical Specification Operating Voltage: 230V AC 1 or 2 Channel: 1 Channel Controls LED Lighting (max.): 250W 1st Channel Filament/Halogen Loading: 2000W 1st Channel Fluorescent/Low Energy Loading: 500/150W CFL/Low Energy Weatherproof Rating: IP44 Detection (metres max.): 8m Angle of Detection: 360° Light ON Time after last (seconds min.): 3 Detection (Adjustable) – (minutes max.): 18 Permanent ON Facility: Electronic Adjustable light level control EC Directives (conforms to latest directives) Dimensions (Height x Width x Depth): 53 x 103 x 103mm Comes with a 3 Year Manufacturer's Warranty
Expert ElectricalTimeGuard Surface Mount PIR Presence Detector
