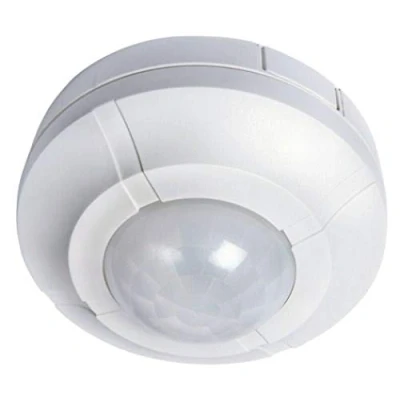

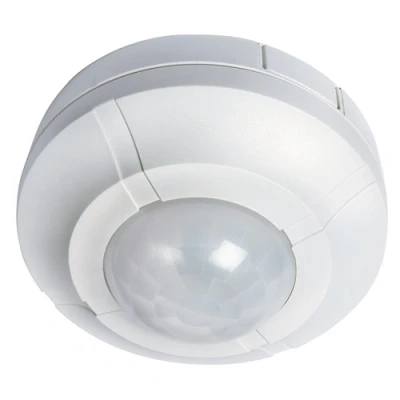

Timeguard 360 Surface Mount Ceiling PIR Detector (2019 Model)

Electrical World

Timeguard SLW360L 360° Surface Mount Ceiling PIR Presence Detector Ideal for energy saving installations in the workplace, corridors, offices, toilets etc., where light control can make all the difference. 360° ceiling surface mount PIR presence detector. 6m diameter (3m radius) detection range at 2.5m mounting height. No creep zone - maximum coverage. Light ON time adjustable from 5 seconds to 18 minutes. Manual ON/OFF override. IP44 weatherproof rating (rated for restricted internal applications). Adjustable light level control. Total PIR switching: 2000W (e.g. 20x 100W GLS) incandescent or halogen, 500W fluorescent/low energy Not suitable for discharge and LED lighting. 75W fan. Technical Specification Operating Voltage: 230V AC 1 or 2 Channel: 1 Channel 1st Channel Filament/Halogen Loading (W): 2000/2000 1st Channel Fluorescent/Low Energy Loading (W): 500 Weatherproof Rating: IP44 Detection Range (Max) Metres: 6 Dia Angle of Detection: 360° Light ON Time After Last Detection (Adjustable): 5 Seconds (Min), 18 Minutes (Max) Permanent ON Facility: Electronic Adjustable Light Level Control: Yes EC Directives: Conforms to Latest Directives Overall Dimensions: Height 104mm / 4.09in Width 104mm / 4.09in Depth 55mm / 2.17in Comes with a 3 Year Manufacturer's Warranty

Amazon

Timeguard SLW360N 360º Surface Ceiling PIR Presence Occupancy Detector / Switch **LED COMPATIBLE**, Weight: 0.40344593946 pounds, Manufacturer: Timeguard
