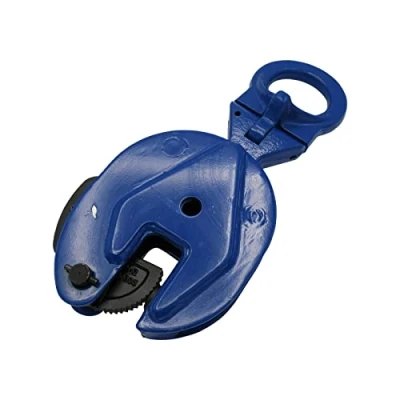

Vertical Plate Lifting Clamp 2 Ton (0 25MM Grip Sheet Non Slip 2000KG)

ManoMano

Vertical Plate Lifting Clamp Lifting Capacity - 2 Ton Jaw Opening - 0-25MM Minimum Steel Thickness - 5MM Minimum Loading - 400KG Conforms To BS EN 13155 CODE A(MM)MIN - MAX B(MM)MIN - MAX C(MM) D(MM) E(MM) F(MM) G(MM) H(MM) I(MM) J(MM) SFVLC0.75 190-200 100-105 45 125 36 25 25 26.5 11 43 SFVLC1.5 340-330 180-175 57 198 79 46 29 67 17 76 SFVLC1.6 355-380 185-195 58 180 74 60 47 67 17 76 SFVLC2 335-375 173-180 60 204 74 60 26 67 17 91 SFVLC3 390-438 215-220 83 238 80 62 46 75 21 86 SFVLC3.2 400-435 240-245 83 252 78 63 60 77 22 93 SFVLC4.5 410-435 235-240 81 255 75 63 56.5 75 22 92 These vertical lifting plate clamps are used for vertical lifting and turning of plate material. These clamps do not slip when lifting force is applied or when being lowered. These clamps are equipped with an articulating shackle to provide a versatile and smooth operation. Please note that the minimum loading weight is 20% of swl. The minimum thickness is 20% of the jaw opening plus the minimum opening. Test

Amazon

Lifting Capacity - 2 Ton Jaw Opening - 0-25MM Minimum Steel Thickness - 5MM Minimum Loading - 400KG Conforms To BS EN 13155, Manufacturer: SecureFix Direct
