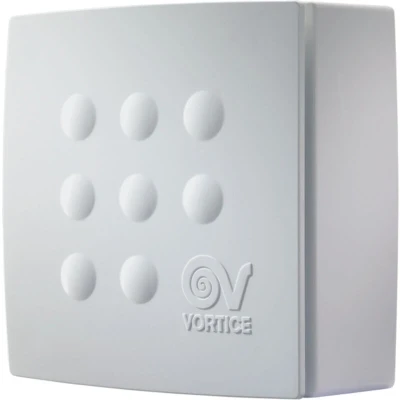

Vortice Quadro Medio T 11946

VORTICE
Vortice Quadro Medio T 11946

Prices from

243.95

Featured

	£ 243.95	To Shop
	£ 301.79	To Shop

Description

ManoMano General description The Centrifugal Duct Fan Quadro Medio T is designed for efficient ventilation in various settings. Its robust construction and advanced features make it suitable for both residential and commercial applications. Technical specifications Voltage: 220-240 V ~ 50 Hz Housing colour: white Housing material: ABS plastic, non-yellowing, UV-resistant Nominal diameter: 100 mm Speed levels: 2 Wattage: 25 / 29 W Current consumption: 0.14 / 0.18 A Revolutions per minute: 1150 / 1890 Airflow rate: 70 / 120 m³/h Total pressure Pmax: 216 / 329 Pa Sound pressure Lp-3m: 36.7 / 43.4 dB(A) Max. temperature for continuous operation: 50°C IP code: IPX4 Insulation class: II Diameter duct connector: 97 mm Dimensions front: 261 x 261 x 119 mm Total depth with duct connector: 150 mm Weight: 2.5 kg Other information Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time Washable synthetic fibre fleece filter Thermal overload protection Self-lubricating bush

Compare webshops (2)

Shop

Price

£ 243.95

To Shop

£ 301.79

To Shop

Description (2)

ManoMano

General description The Centrifugal Duct Fan Quadro Medio T is designed for efficient ventilation in various settings. Its robust construction and advanced features make it suitable for both residential and commercial applications. Technical specifications Voltage: 220-240 V ~ 50 Hz Housing colour: white Housing material: ABS plastic, non-yellowing, UV-resistant Nominal diameter: 100 mm Speed levels: 2 Wattage: 25 / 29 W Current consumption: 0.14 / 0.18 A Revolutions per minute: 1150 / 1890 Airflow rate: 70 / 120 m³/h Total pressure Pmax: 216 / 329 Pa Sound pressure Lp-3m: 36.7 / 43.4 dB(A) Max. temperature for continuous operation: 50°C IP code: IPX4 Insulation class: II Diameter duct connector: 97 mm Dimensions front: 261 x 261 x 119 mm Total depth with duct connector: 150 mm Weight: 2.5 kg Other information Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time Washable synthetic fibre fleece filter Thermal overload protection Self-lubricating bush

Amazon

FINISHING: White TYPE: Centrifugo INSTALLATION: Per condotti COLLECTION: Quadro
