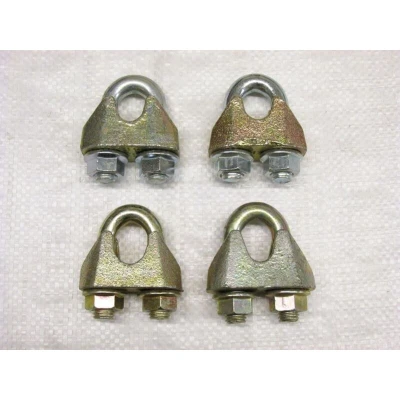

Wire Rope Grips 16MM X4 (Clamp Bulldog Cable Fixing DIN1142 Zinc Plated)

General description These x4 16MM DIN1142 Wire Rope Grips are zinc plated cable clamps designed for secure fixing and lifting applications. They are ideal for use with wire ropes in various settings, including boats, public areas, and yacht rigging. The primary function of these grips is to create loops in wire rope, making them essential for lifting purposes. Technical specifications Size: 16MM Finish: Zinc Plated Quantity: 4 Product Code: SFDING16 Dimensions: A (MM): 39 B (MM): 20 C (MM): 32 D (MM): 13.5 E (MM): 77.5 F (MM): 35 G (MM): 63.5 Installation Ensure installation is performed by a qualified person. Prior to fitting, grease the threads on the nuts and bolts. Maintain a spacing of at least 6 times the diameter of the rope between grips. Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. Leave unused for 24 hours and check the torque setting again, re-tightening if
