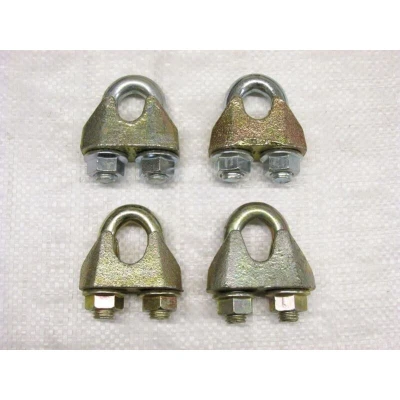

Wire Rope Grips 19MM X4 (Clamp Bulldog Cable Fixing DIN1142 Zinc Plated)

General description These x4 19MM DIN1142 Wire Rope Grips are zinc plated cable clamps designed for secure fixing and lifting applications. They are suitable for use with 19MM wire rope and are ideal for various settings, including boats, public areas, and yacht rigging. The primary function of these grips is to create loops in wire rope for lifting purposes. Technical specifications Size: 19MM Finish: Zinc Plated Quantity: 4 Product Code: SFDING19 Dimensions: A (MM): 44 B (MM): 23 C (MM): 32 D (MM): 14 E (MM): 83 F (MM): 40 G (MM): 67 Installation Ensure installation is performed by a qualified person. Prior to fitting, grease the threads on the nuts and bolts. Maintain a spacing of at least 6 times the diameter of the rope between grips. Orient the grip correctly, with the 'U' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. Leave unused for 24 hours and check torque settings again, re-tightening if necessary.
