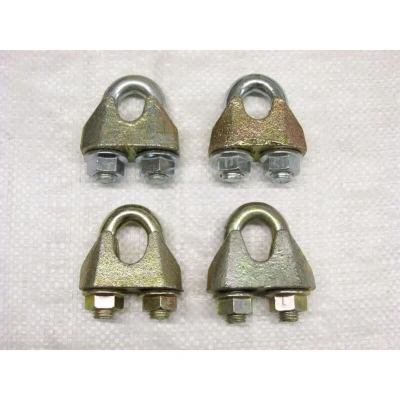

Wire Rope Grips 8MM X4 (Clamp Bulldog Cable Fixing DIN1142 Zinc Plated)

General description Our Wire Rope Grips are designed for use with 8MM wire rope, making them ideal for various applications including boating, public areas, yacht rigging, and lifting purposes. This pack includes four zinc-plated grips that provide excellent corrosion resistance. Technical specifications Size: 8MM Finish: Zinc Plated Quantity: 4 Product Code: SFDING08 Dimensions: A (MM): 22 B (MM): 11.5 C (MM): 21 D (MM): 8 E (MM): 42 F (MM): 18 G (MM): 40 Installation Ensure installation is performed by a qualified person. Prior to fitting, grease the threads on the nuts and bolts. Maintain a spacing of at least 6 times the diameter of the rope between grips. Orient the grip correctly, with the 'U' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. After 24 hours, check the torque setting again and re-tighten if necessary. After the first load application, re-check and re-tighten the torque setting if necessary.
