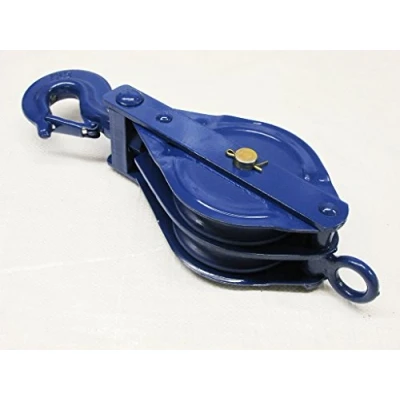

Wire Rope Pulley Block with Hook 0.5 Ton 8MM Cable (Double Sheave Heavy Duty)

ManoMano

Double Block With Hook Safe Working Load - 0.5 Ton Suits Wire Rope - 8MM Finish - Blue Painted Factor Of Safety - 4:1 Conforms To: BS EN 13157: 2004 + A1: 2009 Product Code Safe Working Load A(MM) B(MM) C(MM) D(MM) E(MM) F(MM) SFDBH075 0.5 Ton 75 315 70 87 20 20.5 SFDBH100 1 Ton 100 350 85 112 16 20.5 SFDBH125 1.5 Ton 125 430 95 140 22 27.5 SFDBH150 2 Ton 150 490 112 170 28 27 SFDBH175 3 Ton 175 580 137 200 27 23 SFDBH200 4 Ton 200 660 170 220 32.5 27.5 SFDBH250 5 Ton 250 770 200 275 32.5 31 SFDBH300 6 Ton 290 890 230 335 51 35 Pulley Blocks Are Used For Various Lifting And Towing Applications. These Can Also Be Used For Re-Directing Rope. This Particular Model Is A Double Block And Comes With A Swivel Hook With Safety Catch. This Block Is For Use With 8MM Wire Rope. This Model Comes With A Built In Becket. Test Certificate Included (Sent via eMail) **Please Note We Supply A Huge Variety Of Lifting Equipment** *** FREE DELIVERY *** Product Code - SFDBH075

Amazon

Size - 75MM Safe Working Load - 0.5 Ton A = 75MM, B = 315MM, C = 70MM, D = 87MM, E = 20MM, F = 20.5MM Factor Of Safety - 4:1 Conforms To: BS EN 13157: 2004 + A1: 2009, Manufacturer: SecureFix Direct
