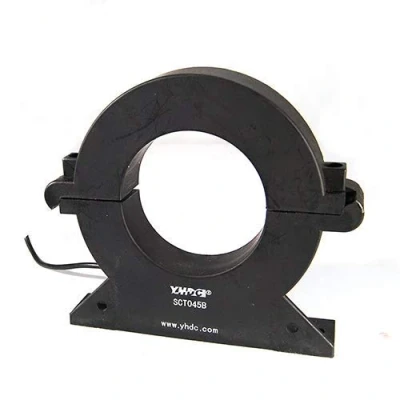

YHDC SCT045B 500A/5A 1% Split core current transformer sensor

Split core current transformer Model: SCT045B Input: 500A Output: 5A Load: 3,75VA Voltage: 720V Frequency: 50Hz ~ 400Hz Output type: cabel Material of core: Silicon steel sheet Flame resistance: UL94-V0 Working temperature: -25 ° C ~ + 80 ° C Storage temperature:-35 ° C ~ + 95 ° C Dielectric strength: 3,5KV 50Hz 1min Max sampling resistance: >100MΩ (500V DC) Weight: 450g Split core structure, round window, sub-plate mount, leading wire output or crimping terminal output.
