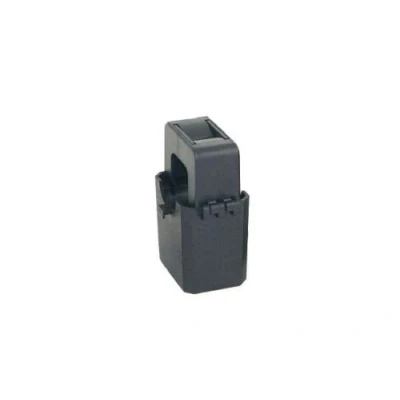

YHDC split core current transformer SCT036TS 120A/5A 1%
Prices from
COMPARE ALL WEBSHOPS
(1)
Amazon
Split core current transformer model SCT036TS Work voltage:720V Rated input: 120A Rated output:5A Accuracy: 1 % Linearity: ≤0.2% Material of core: Silicon steel sheet Flame resistance property: UL94-V0 Work temperature:-25℃～+60℃ Storage temperature:-30℃～+90℃ Frequency range: 50Hz～60Hz Dielectric strength:3.5KV 50Hz 1min Phase error: +0.5±0.5° Max:Sampling resistance: 5Ω Weight: 310g Hanging installation, Crimping terminal output
Read more
17.92
|
£ 17.92 | To Shop |
Description
Amazon
Split core current transformer model SCT036TS Work voltage:720V Rated input: 120A Rated output:5A Accuracy: 1 % Linearity: ≤0.2% Material of core: Silicon steel sheet Flame resistance property: UL94-V0 Work temperature:-25℃～+60℃ Storage temperature:-30℃～+90℃ Frequency range: 50Hz～60Hz Dielectric strength:3.5KV 50Hz 1min Phase error: +0.5±0.5° Max:Sampling resistance: 5Ω Weight: 310g Hanging installation, Crimping terminal output
