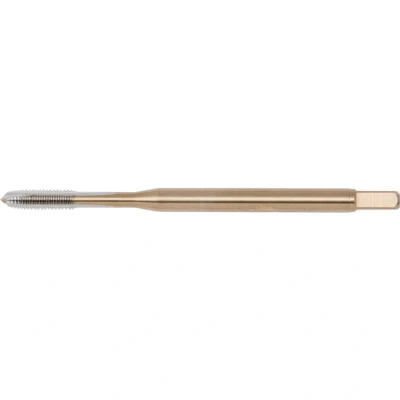

Dormer EP016H HSS E PM Spiral Point Machine tap Metric with Steam Tempered Finish, DIN Standard, Single Pack

ManoMano

Dormer: EP01 M3X0.50 6H HSS-E Spectrum Spiral Point Machine Tap EP01 taps feature a steam tempered HSS with a black oxide coating suitable for use on steel, stainless steel and cast iron. Multi-application machine taps offering superb performance in a wide range of materials. Features and Benefits Spiral point designed for through holes Steam tempered HSS for increased rigidity and tool strength Black oxide coating for improved heat and wear resistance Typical Applications Steel Stainless steel Cast iron Standards Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm MPN: 5973452 EAN: 7320760136119 EP01 M3X0.50 6H HSS-E Spectrum Spiral Point Machine Tap Attributes: Class of Fit: 6H Dimensions Standard: DIN 371 Finish/Coating: Steam Tempered MFR Part No.: EP01M3 Material: Cobalt High Speed Steel Number of Flutes: 3 Overall Length: 56.0mm Pitch: 0.50 Ring Colour: No Coloured Ring Series: EP016H Shank Diameter: 3.5mm Square Width: 2.7mm Tap Type: Spiral Point Tapping Depth: 18.0mm

Amazon

Steam Tempered finish - prevents work piece material from sticking to the cutting edge Premium HSS-E-PM material - Powder Metal High Speed Cobalt provides superior performance and extended tool life Spiral Point Design - Designed for efficient threading of through holes DIN Standard - Manufactured conforming to the German Institute for Standardization Versatile product - Can be used for tapping many materials including steels and stainless steel

Zoro Tools

EP00 HSS-E PM Spiral Point Tap Metric Form Multi-application machine taps offering superb performance in a wide range of materials 2.5xD Programme is available in a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN) Spiral point for through holes EP00 available in sizes M2 - M30 Manufactured to DIN 371 12mm Bright Finish - Suitable for Steel, Cast Iron, Titanium, Nickel, Copper and Aluminium
