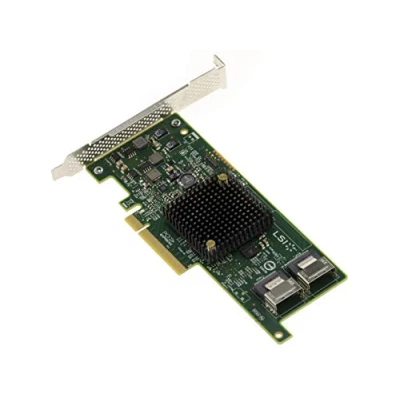

KALEA INFORMATIQUE PCIe 3.0 SAS 6GB 8 internal ports controller card model LSI 9217 8i with Raid 0 1 1E 10

Amazon
KALEA INFORMATIQUE PCIe 3.0 SAS 6GB 8 internal ports controller card model LSI 9217 8i with Raid 0 1 1E 10

Image of KALEA INFORMATIQUE PCIe 3.0 SAS 6GB 8 internal ports controller card model LSI 9217 8i with Raid 0 1 1E 10

Prices from

110.90

£ 110.90

To Shop

Description

Amazon LSI card delivered in "OEM" version, i.e. delivered in a neutral box and with drivers to be downloaded from the LSI site (www.broadcom.com). Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD. Eight internal 6Gb/s SATA+SAS ports, Two internal mini-SAS connectors (SFF8087), LSI SAS2308/ Fusion MPT 2.0. Possible configurations: 8 ea, x1 ports (individual drives) / 2 ea, x4 wide port, SAS Half Duplex bandwidth 600MB/s per lane, Transfer rate 8000 MB/s (PCIe 3.0 8x), Passive Copper cable support, Operating voltage +12V +/-8%; 3.3V +/-9%, Power 9.8W, Support for up to 256 devices in non-RAID mode, RAID support: RAID 0 10 per volume / RAID 1 2 per volume / RAID 1E 10 per volume / RAID 10 10 per volume, Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE.

Compare webshops (1)

Shop

Price

£ 110.90

To Shop

Description (1)

LSI card delivered in "OEM" version, i.e. delivered in a neutral box and with drivers to be downloaded from the LSI site (www.broadcom.com). Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD. Eight internal 6Gb/s SATA+SAS ports, Two internal mini-SAS connectors (SFF8087), LSI SAS2308/ Fusion MPT 2.0. Possible configurations: 8 ea, x1 ports (individual drives) / 2 ea, x4 wide port, SAS Half Duplex bandwidth 600MB/s per lane, Transfer rate 8000 MB/s (PCIe 3.0 8x), Passive Copper cable support, Operating voltage +12V +/-8%; 3.3V +/-9%, Power 9.8W, Support for up to 256 devices in non-RAID mode, RAID support: RAID 0 10 per volume / RAID 1 2 per volume / RAID 1E 10 per volume / RAID 10 10 per volume, Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE.
