YHDC Split core current transformer SCT016T D 50 100A/5 10V (SCT016T 50A/ 5V)

Amazon
YHDC Split core current transformer SCT016T D 50 100A/5 10V (SCT016T 50A/ 5V)

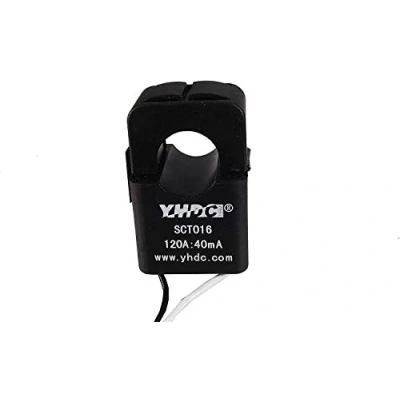

Image of YHDC Split core current transformer SCT016T D 50 100A/5 10V (SCT016T 50A/ 5V)

Prices from

11.10

£ 11.10

To Shop

Description

Amazon SPLIT CORE CURRENT TRANSFORMER Seria SCT016T-D Open Loop Material of core: Ferryt Voltage: 720V Input: 50A/100A Output: 5V DC/5V DC Max input: 100% (continuous) / 150% (1min) Accuracy: ± 2% Working temperature: -25 ℃ ~ + 60 ℃ Storage temperature: -30 ℃ ~ + 90 ℃ Frequency: 50 Hz ~ 60 Hz Dielectric strength: 3,5KV 50Hz 1min Dielectric strength: 3,5KV 50Hz 1min Output ripple voltage: ≤5% Napięcie wyjściowe Output impedance: 7kΩ Isolation impedance: >100MΩ (500V DC)

Compare webshops (1)

Shop

Price

£ 11.10

To Shop

Description (1)

SPLIT CORE CURRENT TRANSFORMER Seria SCT016T-D Open Loop Material of core: Ferryt Voltage: 720V Input: 50A/100A Output: 5V DC/5V DC Max input: 100% (continuous) / 150% (1min) Accuracy: ± 2% Working temperature: -25 ℃ ~ + 60 ℃ Storage temperature: -30 ℃ ~ + 90 ℃ Frequency: 50 Hz ~ 60 Hz Dielectric strength: 3,5KV 50Hz 1min Dielectric strength: 3,5KV 50Hz 1min Output ripple voltage: ≤5% Napięcie wyjściowe Output impedance: 7kΩ Isolation impedance: >100MΩ (500V DC)
