Rawlbolt® Loose Bolt M10/75L (Bag 5)
Featured
|
£ 6.72 |
To Shop
|
|
£ 14.95 |
To Shop
|
Description
Joybuy

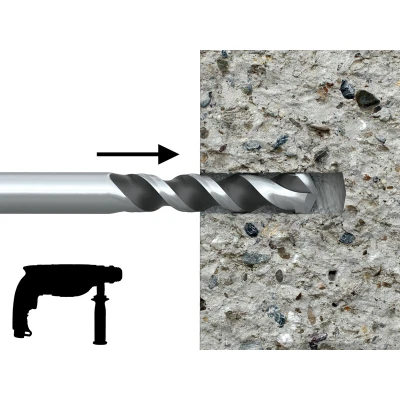

The RAWLPLUG Rawlbolt® Loose Bolt M10/75L is the world's most popular all-purpose expanding shield anchor, engineered for ultimate reliability. Designed for use in both cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics, it is highly recommended for fire-resistant applications.Its three-piece expanding sleeve provides maximum expansion for optimal load distribution and safety in virtually any substrate. The M10/75L specification includes a 10mm anchor diameter and a 140mm total length, designed to accommodate a maximum fixture thickness of 75mm.For correct installation, a 16mm hole diameter is required in the substrate with a minimum hole depth of 65mm. Achieve a secure hold with an installation torque of 27 Nm using a 17mm wrench. Adhere to the minimum spacing of 50mm and a minimum edge distance of 75mm for maximum performance.Trusted by professionals for over a century, Rawlplug delivers superior fastening solutions backed by technical expertise. Sold in a convenient bag of 5.
Description
(2)
The RAWLPLUG Rawlbolt® Loose Bolt M10/75L is the world's most popular all-purpose expanding shield anchor, engineered for ultimate reliability. Designed for use in both cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics, it is highly recommended for fire-resistant applications.Its three-piece expanding sleeve provides maximum expansion for optimal load distribution and safety in virtually any substrate. The M10/75L specification includes a 10mm anchor diameter and a 140mm total length, designed to accommodate a maximum fixture thickness of 75mm.For correct installation, a 16mm hole diameter is required in the substrate with a minimum hole depth of 65mm. Achieve a secure hold with an installation torque of 27 Nm using a 17mm wrench. Adhere to the minimum spacing of 50mm and a minimum edge distance of 75mm for maximum performance.Trusted by professionals for over a century, Rawlplug delivers superior fastening solutions backed by technical expertise. Sold in a convenient bag of 5.
ManoManoGeneral description The Rawlplug Rawlbolt Loose Bolt M10/75L is a versatile anchor designed for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. It is particularly suitable for applications requiring fire resistance, providing reliable load support and safety across various substrates. This loose bolt features a three-piece expanding sleeve that maximizes expansion for optimal anchoring performance. Technical specifications Anchor Diameter: 10mm External Diameter: 16mm Overall Length: 140mm Max Fixture Thickness: 75mm Hole Diameter: 11mm Hole Diameter in Substrate: 16mm Installation Torque: 27 Nm Wrench Size: 17 Minimum Hole Depth in Substrate: 65mm Minimum Installation Depth: 60mm Minimum Substrate Thickness: 100mm Minimum Spacing: 50mm Minimum Edge Distance: 75mm Pack Quantity: Bag of 5 Installation Insert the bolt into a hole of 11mm diameter in the substrate. Ensure the hole depth is at least 65mm. Use a wrench size 17 to tighten the bolt
