Rawlplug RAWM1010LB Rawlbolt Loose Bolt M10/10L (Bag 5), Silver
Featured
|
£ 5.24 |
To Shop
|
|
£ 11.81 |
To Shop
|
Description
Joybuy

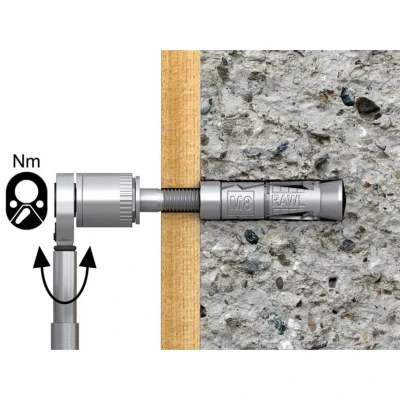

The RAWLPLUG Rawlbolt® Loose Bolt M10/10L is the world's most popular all-purpose expanding shield anchor. Engineered for maximum performance and safety, this three-piece anchor features a sleeve designed for maximum expansion, delivering optimal load capacity in a variety of substrates. It is ETA approved for use in both cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics, making it a highly versatile and recommended choice for applications that require fire resistance.This specific M10 model has an anchor diameter of 10mm and an external diameter of 16mm, with a total length of 75mm. It is designed for fixtures with a maximum thickness of 10mm. For correct installation, a 16mm hole must be drilled in the substrate to a minimum depth of 65mm. The minimum substrate thickness required is 100mm. Achieve a secure hold with an installation torque of 27Nm using a 17mm wrench, while adhering to the minimum spacing of 50mm and edge distance of 75mm for structural integrity. Supplied in a convenient bag of 5, these anchors are part of Rawlplug's trusted legacy of providing reliable, high-performance fixing solutions for professionals.
Description
(2)
The RAWLPLUG Rawlbolt® Loose Bolt M10/10L is the world's most popular all-purpose expanding shield anchor. Engineered for maximum performance and safety, this three-piece anchor features a sleeve designed for maximum expansion, delivering optimal load capacity in a variety of substrates. It is ETA approved for use in both cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics, making it a highly versatile and recommended choice for applications that require fire resistance.This specific M10 model has an anchor diameter of 10mm and an external diameter of 16mm, with a total length of 75mm. It is designed for fixtures with a maximum thickness of 10mm. For correct installation, a 16mm hole must be drilled in the substrate to a minimum depth of 65mm. The minimum substrate thickness required is 100mm. Achieve a secure hold with an installation torque of 27Nm using a 17mm wrench, while adhering to the minimum spacing of 50mm and edge distance of 75mm for structural integrity. Supplied in a convenient bag of 5, these anchors are part of Rawlplug's trusted legacy of providing reliable, high-performance fixing solutions for professionals.
ManoManoGeneral description The Rawlplug Rawlbolt Loose Bolt M10/10L is a versatile and reliable anchor designed for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks, and ceramics. It features a three-piece expanding sleeve that maximizes expansion for optimal load capacity and safety across various substrates. This product is part of the popular all-purpose expanding shield anchor range, making it ideal for securing fixtures in construction and DIY projects. Technical specifications Anchor Diameter: 10mm External Diameter: 16mm Length: 75mm Max Fixture Thickness: 10mm Hole Diameter: 11mm Hole Diameter in Substrate: 16mm Installation Torque: 27 Nm Wrench Size: 17mm Minimum Hole Depth in Substrate: 65mm Minimum Installation Depth: 60mm Minimum Substrate Thickness: 100mm Minimum Spacing: 50mm Minimum Edge Distance: 75mm Pack Quantity: Bag of 5 Installation Drill a hole with a diameter of 16mm to a minimum depth of 65mm. Insert the bolt into the hole. Use a 17mm wrench
